Diamond Dressers

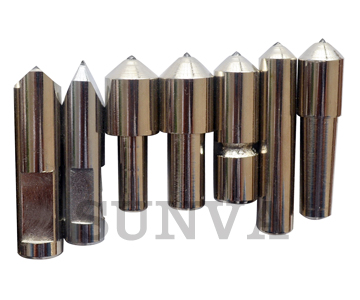

Diamond Dressers








• Synthetic diamond or natural diamond

• High-quality

• Can be manufactured according to your exact needs

• Other types are available
Diamond Dresser

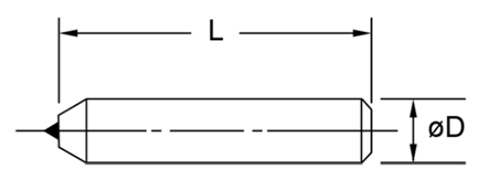

Single Point Diamond Dressers
Stone Weight Order No.
0.25 carat DS025
0.30 carat DS030
0.50 carat DS050
0.75 carat DS075
1.00 carat DS100
1.20 carat DS120
1.50 carat DS150
2.00 carat DS200

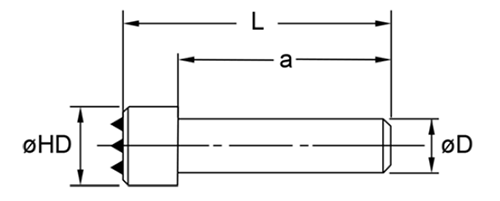

Multi Points Diamond Dressers
Total Weight Nos. of stone Order No.
1.0 carat 3 DM03110
1.0 carat 5 DM05110
1.0 carat 6 DM06110
1.4 carat 7 DM07114
0.6 carat 3 DM03106

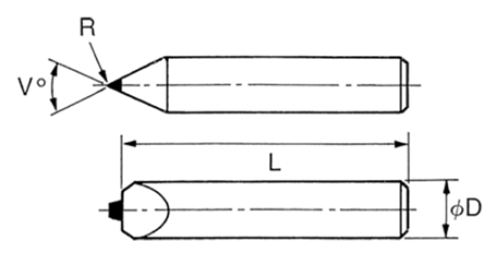

Chisel Type Diamond Dressers
V° R Order No.
55° 0.2R DR0255
60° 0.5R DR0560

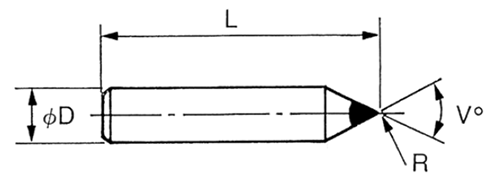

Coned Diamond Dressers
V° R Dimensions of shank Order No.
60° 0.02～0.03R φ1/8"×1"L DC600
60° 0.02～0.03R φ1/8"×2"L DC601
60° 0.02～0.03R φ1/4"×2"L DC602
60° 0.02～0.03R φ3/8"×2"L DC603
60° 0.02～0.03R φ10mm×50mmL DC604
